From Drawing to Inspection- In Minutes, Not Hours
Manual or automated, ballooning is just the start.
KNEO completes the entire workflow - from drawing to inspection-ready data.
Less manual work. Faster product development.
Your engineers spend hours on repetitive work instead of designing
If You’re Doing It Manually
Every drawing means:
- Ballooning each dimension one by one
- Interpreting GD&T manually
- Checking notes separately
- Preparing inspection plans in Excel
If You’re Using a Tool
Most tools automate ballooning - but only partially:
- Engineers still validate GD&T
- Manual selection of parameters for autoballooning
- Revisions still require rework
Where it impacts Business
This slows down your entire product development cycle
From Partial Automation to Complete Workflow

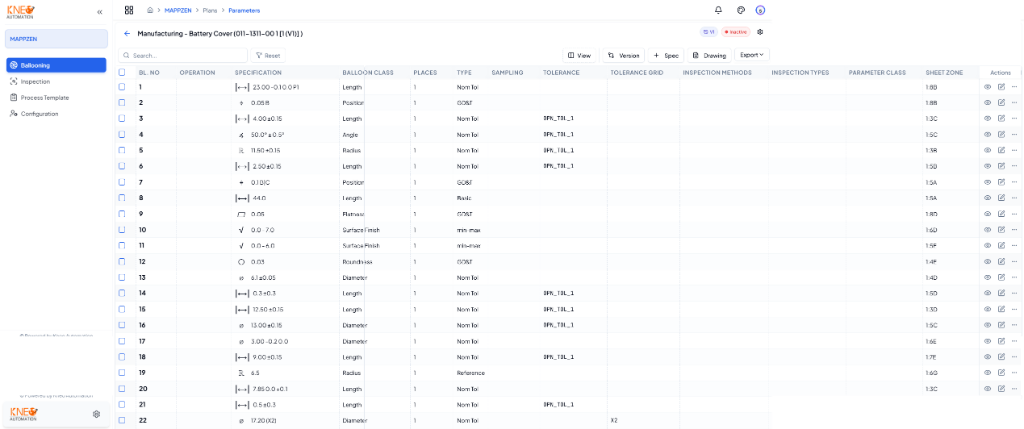

Design data is automatically structured and flows into your Inspection process?
KNEO doesn’t stop at ballooning.
It completes the remaining manual work - converting drawings into structured, inspection-ready data that flows into your process.
Drawing-to-Inspection Pipeline
From drawing to ready output - in one connected flow
Built on 24+ Years of Engineering Expertise

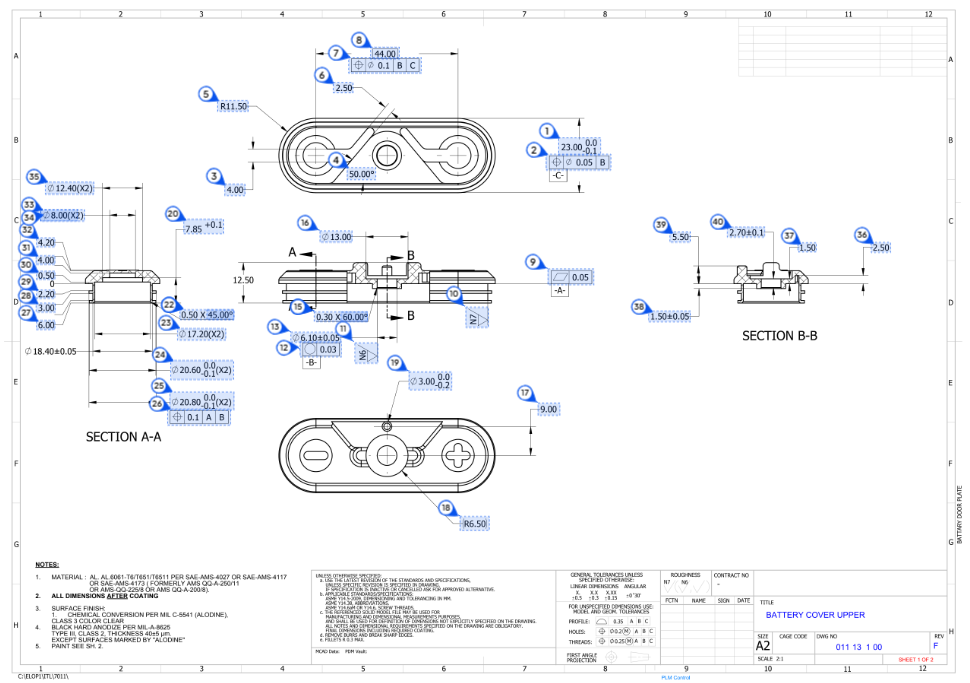

Watch Hours of Work Done in 60 Seconds

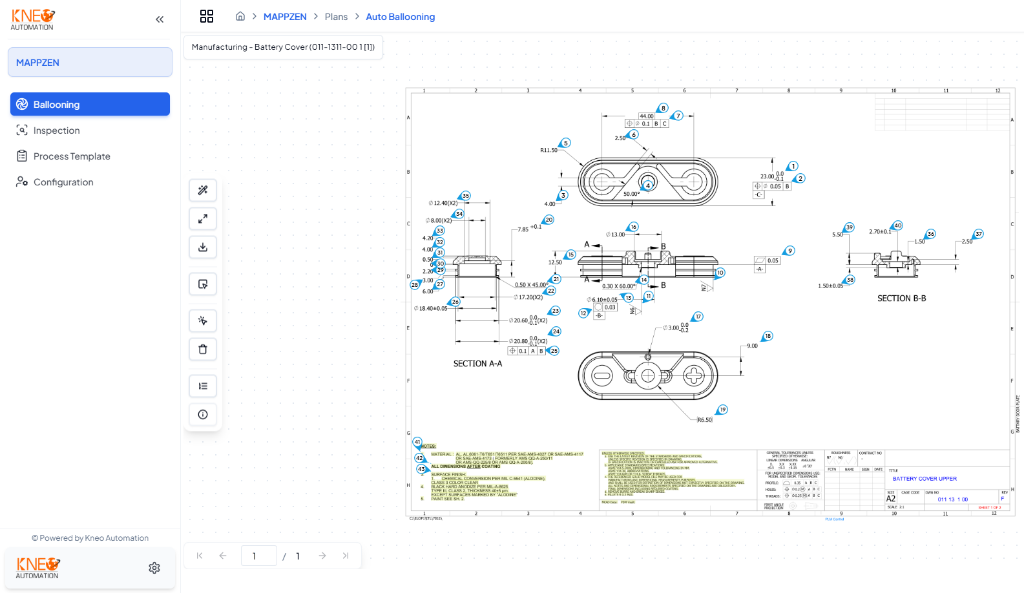

Upload a drawing. See ballooning, GD&T detection, and inspection plan generated instantly.
From Manual Effort to Workflow Automation
Where Other Tools Stop, KNEO Completes the Job

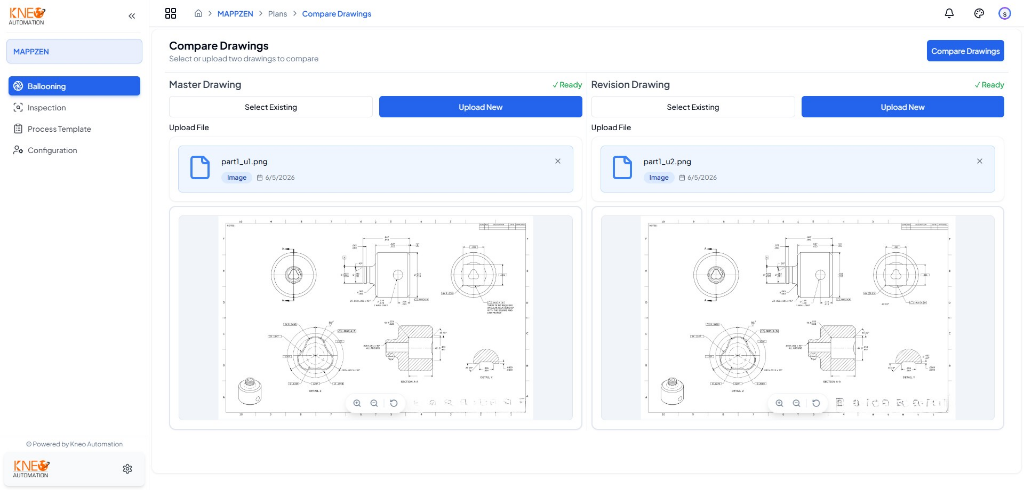

Drawing Comparison - To highlight changes in revisions in drawings.
Rev B comes in?
- See every change instantly
- No re-ballooning
- No missed updates
GD&T Detection - Accuracy You Can Trust
- Full GD&T classification
- Datums + tolerance captured
- No manual interpretation
Notes Capture - Zero Missed Requirements
- Captures inspection notes
- Prevents NCRs
- Ensures compliance
Your Drawings Stay Within Your System
Engineering drawings are critical data.
Cloud tools store data externally. KNEO runs on your server.
- No data leaves your system
- Fully secure for OEM requirements
- Accessible via browser
From Drawing to NPD - Fully Connected
• No duplicate work
• No disconnected spreadsheets
• Faster product development cycles
What Manufacturers Ask Before Choosing KNEO
See Your Next Drawing Processed in Minutes
Upload a real drawing. Watch ballooning, GD&T detection, and inspection plan generation - live.
Trusted by 150+ manufacturers • 24+ years of engineering expertise
